Hoo New
Couldn't leave it alone. If you look carefully at the pic above, I not only swapped out the brass tuning pins for proper zither pins, but took the excuse to re-drill for seven strings instead of six.
Which involved shaving very tiny dowels out of the red oak and gluing them into the old holes, but anyhow. Also re-carved the bridge and made a new tailpiece. Even tied on proper tailpiece knots (although would work better if the holes were spaced further back).
(I also have to say I like the sound of the metal-wound nylon string better than the bare nylon ones.)
What changes? A few more melodies open up. Especially if I use "pinch harmonics" to get that octave. And I can play triads for all the notes of the major scale (with necessary inversions; the VII chord has the root on the top). On the downside, I practically have to play the seventh degree on the I chord because otherwise there's two dead "plunks" at the top of the strum.
This is the spot where you really start to learn about the functionality of the instrument. I've been working with it, finding different ways to play it, seeing how to record it. I have to say I find the string noise a bit objectionable, especially in the strum. That's something that in many musical cultures is considered a feature not a bug. Musicologists write of the "percussive effect of the strum" when reconstructing performance practice for a Sutton Hoo-type lyre.
So, yeah. Next instrument, proper tonewoods. A larger sound cavity, a thinner back. Larger wouldn't hurt and make sure the midpoint of the strings is fully exposed for easier harmonics. Also flatten the curve of the pins. Calculate the tone hole (and put a rosette in it).
Okay: tuning up a whole step helped, as did going to a leather pick (in the example below, leather pick, nail strum in the traditional way, finger strum, and finger picking.)
Still, I'm unlikely to do a second Sutton Hoo. Might do a Trossingham, or a Celtic Lyre. Or a harp. Or one of two fictional instruments. Such as:
Traditional Vulcan Lyre: Assume that the contemporary (contemporary with Spock) instrument is an electric with a highly modified sound. Go back into the instrument's history to project what it might have been as a strictly acoustic instrument. Were the strings gathered at a single-point bridge and was there a tremolo knob (as is apparently the case with the Kithara?) Were there drone strings?
Goddess Harp: I am still puzzled by how to make this acoustic, whilst staying as close as possible to in-game depiction. For instance, since the strings appear to attached directly to the crossbar, the tuners might want to be hidden inside the body. So what is the soundboard? Is it the upper curve? (It feels like this is curved too much to be acoustically viable. Sure, a violin has a curved soundboard, but the Goddess Harp represents a smaller, more highly shaped area, with a much sharper curve.) Or is the soundboard hidden inside, along the frontal plane?
I'm tempted to design some test rigs. But later. Much later. At the moment I have an instrument and I have the music I meant to make with it loaded into Reaper.
Thursday, October 11, 2018
Sutton Hoo
Sometime in the 7th century an Anglian King was buried in his ship on the banks of a river in Suffolk, England. Most people will remember the Sutton Hoo helmet (which is on display at the British Museum.)
There were also sufficient fragments to reconstruct a lyre. Unlike the Greek Kithara with the separate crossbar this is a compact rectangular instrument that gives the appearance of being made from a single plank.
The historical playing style, as reconstructed by Master Dofinn-Hallr Morrisson, is that it is strummed with the right hand (plectrum or backstroke with the nails) whilst the support hand mutes selected strings autoharp style. It can also be plucked from the right hand, and a modern master has demonstrated drone plucking with the left thumb as well as pinch harmonics.
Acoustically, it is a cigar-box guitar without a fretboard. Which I expect would make it relatively robust to changes in dimension and shape. Most people who have made a Sutton Hoo-style lyre have modified them in various ways for ease of play and ease of construction. I borrowed several elements from other lyre builders for this my first build, relying largely on instructions made freely available by David Friedman/Cariadoc.
And, yes, I dream about grain-matched sapele and torrefied sitka spruce but I decided to make this a budget build; fast and cheap.
MATERIALS:
White Pine: a short plank of 1 x 12. The most common (and cheapest) lumber at any store.
Basswood (linden): an eighth-inch thick hobby board (8" x 24") from Orchard Supply Store.
Red Cedar: another OSH hobby board, quarter inch thick and 2" wide.
Brass rod: one eight inch, also from OSH's hobby supplies.
A pack of cheap acoustic guitar strings from Starving Musician.
Total materials about fifteen bucks. (Staining and finishing adds a bit, but the instrument plays fine without all that).
BODY:
First step was drawing out. I scaled Cariadoc's outer dimensions (8" x 30") to the wood I had, then after drawing it checked to make sure I could still get a hand inside. In case you are wondering, I went for 6" x 17", with 3/4" side rails (cut back to 1/2" inside the soundbox). That gives it roughly the scale length of a ukulele.
There's two basic ways to make the soundbox on this; either cut out a hole and cover front and back with solid pieces of wood (quarter inch for the back...and I'll discuss the soundboard soon enough). Or you can carve out the cavity. I chose to do it the quick and dirty way. The two long boards in the picture here are guides to keep the router from flying through the side walls should I slip.
(Later in the rout I added a top board and adjusted the plunge; otherwise the unsupported router can tip into the gap you are carving and ruin the piece.)
Three passes with the router, and a tiny bit of clean-up with a wood rasp, and the soundbox is made.
Next was cutting out the hand hole. Typical jigsaw work. (I'm spoiled; I also have bandsaw and scrollsaw available.)
After all the holes were done I used table saw and chopsaw to take the original plank down to dimension, bandsaw to rough out the ends, then bench sander to round things off properly. The interior cut, alas, had to be approached with hand rasp.
White pine is strong enough in these dimensions, especially for "gut" (nylon) stringing. The go-to wood is ash, although spruce, maple, cedar, yew and others are all nice alternatives. Plywood will work as well; again, this structure is under small enough stresses that regular plywood will handle it. It won't sound as good, of course, but it can sound good enough.
SOUNDBOARD:

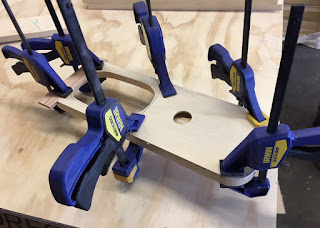

Rough-cut the soundboard to slightly over the dimensions of the body, and pre-cut a sound hole. The Sutton Hoo lyres did not use a sound hole but several modern versions do.
I made mine an arbitrary size and position -- I went for roughly a third, as the third has magical properties in musical instruments (directly center you risk amplifying the primary resonance node of the body. And, yes, you can calculate the resonance frequency of the cavity. There's a simple formulae many luthiers use for sound hole size but it is based on an ideal Helmholtz resonator. Later papers show the critical factor is actually the length of the edge, not the area of the hole (which is why rosettes work, and why a violin has f-holes).
Basically, soundboard is like the head of a drum, and is where much of the volume is coming from. Cutting a hole allows the air inside the sound cavity to communicate with the outside, raising the volume but also changing the timbre (favoring the lower frequencies).
This is why you want a nice wood for the soundboard. Basswood is technically a hardwood and has been used for tonewood, but the best vote for it is that it is better than plywood.
There's an extra bit here. Pine and basswood are softer woods and might not support a tuning pin. As with other builders, I reinforced the crossbar with another wood (the red cedar). Routed down the thickness of the plank, stuck it in, glued down everything. I could have used more clamps.
TAILPIECE:
There are a number of different ways you can fasten the dead end of the strings. I followed another Sutton Hoo builder in carving a simple tailpiece out of red cedar. For simplicity in build I drove a dowel (actually, a piece cut off the end of a cheap foam brush) into the heel (where I'd intentionally made the wall a little thicker just for this. The tailpiece is fastened to this heel peg with a loop of steel wire.
The bridge is also carved from that same budget-stretching chunk of red cedar.
Actually, three bridges. Basically, all sound comes from the vibrating string. But a string has a small cross-section. It moves very little air. To get a performance-level sound you need an impedance matcher. It's the same thing that causes a trumpet to have a bell. The soundboard provides the large area to shove air. The bridge acoustically couples the string to the soundboard.
And it is a dance. The violin bridge is thin and flexible because it is designed to steal the maximum energy from the string. A violin string is continuously energized and has very little sustain. Volume is a trade-off for sustain.
So my first bridge was too low. The second used a nut-and-saddle arrangement like a guitar bridge; the hard contact point steals less energy from the string meaning longer sustain but less volume. But that didn't sound good. So the final bridge was raw red cedar, and I'm shaving it down to be thinner and more responsive today.
Position is also critical. Unlike a guitar, I chose a captive bridge arrangement; it is held in place only by the tension of the strings.
STRINGING:
Yes, this is out of order. You don't need to stain and varnish your instrument in order to try playing it. Period instruments weren't. Well, not really (a little linseed oil at least).
For this build I put a knot in the end of each string and passed them through a hole in the tailpiece. Next build I'll try a bridge knot. Then wrapped around the tuning pin and through the hole. Get them all on and then stand up the bridge under them.
A nice benefit to the short scale length is I could get two courses from each guitar string. So this is strung with the top three strings of a nylon acoustic set; the G, the B, and the E (Gather Before Elrond).
The lyre is tuned diatonically, often omitting the second scale degree (aka for C Major you'd tune C, D, E, F, G, A) Also often inverted, starting on the third or fourth degree. I tuned mine to A Major, included the second, and since like all my examples it only has six strings that means I have no seventh.
Seven strings is better. Seven strings means you can play many melodies (just transpose down the octave) and you can "fret" all the triads of the major scale (with the appropriate inversions).
FINISHING:
There were also sufficient fragments to reconstruct a lyre. Unlike the Greek Kithara with the separate crossbar this is a compact rectangular instrument that gives the appearance of being made from a single plank.
The historical playing style, as reconstructed by Master Dofinn-Hallr Morrisson, is that it is strummed with the right hand (plectrum or backstroke with the nails) whilst the support hand mutes selected strings autoharp style. It can also be plucked from the right hand, and a modern master has demonstrated drone plucking with the left thumb as well as pinch harmonics.
Acoustically, it is a cigar-box guitar without a fretboard. Which I expect would make it relatively robust to changes in dimension and shape. Most people who have made a Sutton Hoo-style lyre have modified them in various ways for ease of play and ease of construction. I borrowed several elements from other lyre builders for this my first build, relying largely on instructions made freely available by David Friedman/Cariadoc.
And, yes, I dream about grain-matched sapele and torrefied sitka spruce but I decided to make this a budget build; fast and cheap.
MATERIALS:
White Pine: a short plank of 1 x 12. The most common (and cheapest) lumber at any store.
Basswood (linden): an eighth-inch thick hobby board (8" x 24") from Orchard Supply Store.
Red Cedar: another OSH hobby board, quarter inch thick and 2" wide.
Brass rod: one eight inch, also from OSH's hobby supplies.
A pack of cheap acoustic guitar strings from Starving Musician.
Total materials about fifteen bucks. (Staining and finishing adds a bit, but the instrument plays fine without all that).
BODY:
First step was drawing out. I scaled Cariadoc's outer dimensions (8" x 30") to the wood I had, then after drawing it checked to make sure I could still get a hand inside. In case you are wondering, I went for 6" x 17", with 3/4" side rails (cut back to 1/2" inside the soundbox). That gives it roughly the scale length of a ukulele.
There's two basic ways to make the soundbox on this; either cut out a hole and cover front and back with solid pieces of wood (quarter inch for the back...and I'll discuss the soundboard soon enough). Or you can carve out the cavity. I chose to do it the quick and dirty way. The two long boards in the picture here are guides to keep the router from flying through the side walls should I slip.
(Later in the rout I added a top board and adjusted the plunge; otherwise the unsupported router can tip into the gap you are carving and ruin the piece.)
Three passes with the router, and a tiny bit of clean-up with a wood rasp, and the soundbox is made.
Next was cutting out the hand hole. Typical jigsaw work. (I'm spoiled; I also have bandsaw and scrollsaw available.)
After all the holes were done I used table saw and chopsaw to take the original plank down to dimension, bandsaw to rough out the ends, then bench sander to round things off properly. The interior cut, alas, had to be approached with hand rasp.
White pine is strong enough in these dimensions, especially for "gut" (nylon) stringing. The go-to wood is ash, although spruce, maple, cedar, yew and others are all nice alternatives. Plywood will work as well; again, this structure is under small enough stresses that regular plywood will handle it. It won't sound as good, of course, but it can sound good enough.
SOUNDBOARD:
Rough-cut the soundboard to slightly over the dimensions of the body, and pre-cut a sound hole. The Sutton Hoo lyres did not use a sound hole but several modern versions do.
I made mine an arbitrary size and position -- I went for roughly a third, as the third has magical properties in musical instruments (directly center you risk amplifying the primary resonance node of the body. And, yes, you can calculate the resonance frequency of the cavity. There's a simple formulae many luthiers use for sound hole size but it is based on an ideal Helmholtz resonator. Later papers show the critical factor is actually the length of the edge, not the area of the hole (which is why rosettes work, and why a violin has f-holes).
Basically, soundboard is like the head of a drum, and is where much of the volume is coming from. Cutting a hole allows the air inside the sound cavity to communicate with the outside, raising the volume but also changing the timbre (favoring the lower frequencies).
This is why you want a nice wood for the soundboard. Basswood is technically a hardwood and has been used for tonewood, but the best vote for it is that it is better than plywood.
There's an extra bit here. Pine and basswood are softer woods and might not support a tuning pin. As with other builders, I reinforced the crossbar with another wood (the red cedar). Routed down the thickness of the plank, stuck it in, glued down everything. I could have used more clamps.
TAILPIECE:
There are a number of different ways you can fasten the dead end of the strings. I followed another Sutton Hoo builder in carving a simple tailpiece out of red cedar. For simplicity in build I drove a dowel (actually, a piece cut off the end of a cheap foam brush) into the heel (where I'd intentionally made the wall a little thicker just for this. The tailpiece is fastened to this heel peg with a loop of steel wire.
The original tailpiece had this decorative hole. For strength I replaced it with a solid tailpiece. I've seen a bunch of different ways of tying on the strings but I haven't found one I like yet. Also, the test fit used leather laces. Those snapped. I tried a braided cord and that creeped. So now it is steel wire.
TUNING PINS:
The go-to for amateur luthiers is the zither pin; cheap, easy to install, holds well and doesn't take up a lot of space. It is what harps use, even the harp inside a piano. I was in a hurry and wanted to see if this could be done on a budget so I went for hand-fabricated brass.
Simple; cut out lengths of rod, pounded one end flat on the anvil, drilled a hole, the chucked it in a drill and "lathed" a rough point on the other end. Drilled a size too small and pounded them in with a block of wood.
BRIDGE
The bridge is also carved from that same budget-stretching chunk of red cedar.
Actually, three bridges. Basically, all sound comes from the vibrating string. But a string has a small cross-section. It moves very little air. To get a performance-level sound you need an impedance matcher. It's the same thing that causes a trumpet to have a bell. The soundboard provides the large area to shove air. The bridge acoustically couples the string to the soundboard.
And it is a dance. The violin bridge is thin and flexible because it is designed to steal the maximum energy from the string. A violin string is continuously energized and has very little sustain. Volume is a trade-off for sustain.
So my first bridge was too low. The second used a nut-and-saddle arrangement like a guitar bridge; the hard contact point steals less energy from the string meaning longer sustain but less volume. But that didn't sound good. So the final bridge was raw red cedar, and I'm shaving it down to be thinner and more responsive today.
Position is also critical. Unlike a guitar, I chose a captive bridge arrangement; it is held in place only by the tension of the strings.
STRINGING:
For this build I put a knot in the end of each string and passed them through a hole in the tailpiece. Next build I'll try a bridge knot. Then wrapped around the tuning pin and through the hole. Get them all on and then stand up the bridge under them.
A nice benefit to the short scale length is I could get two courses from each guitar string. So this is strung with the top three strings of a nylon acoustic set; the G, the B, and the E (Gather Before Elrond).
The lyre is tuned diatonically, often omitting the second scale degree (aka for C Major you'd tune C, D, E, F, G, A) Also often inverted, starting on the third or fourth degree. I tuned mine to A Major, included the second, and since like all my examples it only has six strings that means I have no seventh.
Seven strings is better. Seven strings means you can play many melodies (just transpose down the octave) and you can "fret" all the triads of the major scale (with the appropriate inversions).
FINISHING:
This is more a "lessons learned" for me. It is really hard to tell when you've got the scratches out on softwoods. I sanded like heck, stained, and only then discovered a bunch more scratches. Sanded out the scratches, tried a different stain, and it made a lovely ancient-wood look but in the end I went for a darker serious instrument look.
And really, I hurried too much. And no -- polyurethane is fast but it deadens the sound a little. Shellac next time.
Next time. Hardwoods, perhaps tuning pegs. Seven strings or better (historical depictions show a break around seven strings; either they have fewer and are played strum-and-block, or they have more and are played plucked like a harp, front-and-back-hand style).
Rosette because why not (when I have a laser, after all).
But, really, I've learned what I need from a Sutton Hoo. It is time to build a different lyre, or perhaps a proper harp...
Wednesday, October 10, 2018
Wandring minstrel I
The Mini-Hoo is done.
My only real disappointment is that I made it with six strings (most of the makers I was following had used six strings on theirs.) Seven strings would allow me to do a bunch more melodies and all of the major triads (in the appropriate inversions) of a major scale.
This was all about the learning. I built it cheap, mostly because I didn't want to waste time and money on something that might not work at all, but also to see if it could be done. And, yes; for about $15 in supplies and a couple afternoons work I got an instrument that doesn't sound too bad.
I've never built an instrument from scratch. There's a thing about experience that goes beyond the itemized and the strictly quantifiable; a gut sense of fabrication times and achievable tolerances and material variance and structural strength and stress patterns and failure modes. I had it in wood and basic woodworking. Now I have some of that in instrument building.
The first tailpiece hitch was leather cord. That snapped. The second was nylon string. That stretched. Now it is wire and I can tune it up to pitch. So that's a nice idea of the stresses and the material qualities required to withstand them. The hand-made brass tuning pins are right on the edge; when I tune to AMaj they are starting to creep. I'll be dropping in zither pins when I remove the revised bridge for finishing.
So that's a few learning experiences already. I went through three bridges; the first turned out to be too short when I changed how the strings were set into the tailpiece. The second had a brass rod for a nut to get the maximum sustain out of the strings. But then I decided I wanted volume instead, so I pulled the brass and reshaped the red oak of the bridge and it now has a decent sound. And if I shaved it thinner, it will be even less sustain but also change the tonal qualities (I hope, in a positive direction).
That, and moving the bridge around a lot, plus strumming in different places, to try and get an idea of what is going on in the interaction of all those elements.
Oh, and as one instrument builder put it, even a plywood soundboard will sound nicer when you tune the instrument higher...up until the moment it implodes. I can get lower tones easy enough, but it didn't get a nice sound until it was pitched up around ukulele pitches. Which sorta makes sense as the scale length is about ukulele size, too.
So, yeah, white pine is strong enough for this, and basswood (linden) makes a decent soundboard, but now I have a more focused instinct for what is asked of the materials and now I wouldn't dare use anything but a hardwood (or at least baltic birch ply) for a Celtic Harp. And I think I know how a decent tonewood would improve on the sound of an instrument like this one.
Even the varnish matters. I used polyurethane and yes I can hear the difference. Fortunately, for this instrument and my tastes, the changes aren't all bad.
I did this instrument entirely without math, and there are ways to figure out optimum string lengths and bridge placement and tone hole size but, you know, a good structure and a proper sound cavity and you can get a decent sound off a rather surprising variety of proportions.
Next post (probably!) the actual build, and sound samples.
My only real disappointment is that I made it with six strings (most of the makers I was following had used six strings on theirs.) Seven strings would allow me to do a bunch more melodies and all of the major triads (in the appropriate inversions) of a major scale.
This was all about the learning. I built it cheap, mostly because I didn't want to waste time and money on something that might not work at all, but also to see if it could be done. And, yes; for about $15 in supplies and a couple afternoons work I got an instrument that doesn't sound too bad.
I've never built an instrument from scratch. There's a thing about experience that goes beyond the itemized and the strictly quantifiable; a gut sense of fabrication times and achievable tolerances and material variance and structural strength and stress patterns and failure modes. I had it in wood and basic woodworking. Now I have some of that in instrument building.
The first tailpiece hitch was leather cord. That snapped. The second was nylon string. That stretched. Now it is wire and I can tune it up to pitch. So that's a nice idea of the stresses and the material qualities required to withstand them. The hand-made brass tuning pins are right on the edge; when I tune to AMaj they are starting to creep. I'll be dropping in zither pins when I remove the revised bridge for finishing.
So that's a few learning experiences already. I went through three bridges; the first turned out to be too short when I changed how the strings were set into the tailpiece. The second had a brass rod for a nut to get the maximum sustain out of the strings. But then I decided I wanted volume instead, so I pulled the brass and reshaped the red oak of the bridge and it now has a decent sound. And if I shaved it thinner, it will be even less sustain but also change the tonal qualities (I hope, in a positive direction).
That, and moving the bridge around a lot, plus strumming in different places, to try and get an idea of what is going on in the interaction of all those elements.
Oh, and as one instrument builder put it, even a plywood soundboard will sound nicer when you tune the instrument higher...up until the moment it implodes. I can get lower tones easy enough, but it didn't get a nice sound until it was pitched up around ukulele pitches. Which sorta makes sense as the scale length is about ukulele size, too.
So, yeah, white pine is strong enough for this, and basswood (linden) makes a decent soundboard, but now I have a more focused instinct for what is asked of the materials and now I wouldn't dare use anything but a hardwood (or at least baltic birch ply) for a Celtic Harp. And I think I know how a decent tonewood would improve on the sound of an instrument like this one.
Even the varnish matters. I used polyurethane and yes I can hear the difference. Fortunately, for this instrument and my tastes, the changes aren't all bad.
I did this instrument entirely without math, and there are ways to figure out optimum string lengths and bridge placement and tone hole size but, you know, a good structure and a proper sound cavity and you can get a decent sound off a rather surprising variety of proportions.
Next post (probably!) the actual build, and sound samples.
Sunday, October 7, 2018
Talk to the thumb
Wood stain is drying on my Sutton Hoo. I will not be surprised if the tuning pegs don't hold or the tailpiece snaps when I put it under tension, but no biggie. I have proper zither pins arriving Monday. The only reason I went with the brass pins is I wanted to see if it made a sound before I wasted a lot of time doing the finish work.
So I guess it makes sense I've started a Reaper file for "Uncharted Worlds" (the music that plays in the galaxy map and planet probe screen of all the Mass Effect games). The process is a little different on this one; found a MIDI file that seems close enough. Spent the afternoon finding voicing for it that matched the capabilities of my available instruments. And tried the top one (the ukulele part). Not too bad.
(Toughest part is my violin-trained instinct is to fret each upcoming note as soon as possible. For a guitar or uke part you may want to stay fretted in order to let the note sustain.)
Yes, there's a link. I started thinking about baby harps and similar when I realized "Uncharted Worlds" would need more and distinct voices than I currently own. And that got me thinking about instrument kits and one thing led to another...and there will be a fully detailed post on my new instrument when it is done and functional and I've had a chance to record a sample off it.
Bass practice is ongoing for the Hellboy cover. My thumb finally listened to me (I think it was changing my position; took off the neck strap and propped the bass on a leg instead. That freed my plucking hand from a support role.) So anyhow the thumb slide method is working for me now. Still some issues damping the D string but it is much less problematic than that A.
Yeah; on listen through playback other than headphones the test bass part I recorded really wasn't working for me. I need that finger plucked sound and I need to control the excess resonance. And that means learning proper bass technique.
And speaking of a Link:
While I was looking at various people's DIY harps and lyres I ran across builds of the "Goddess Harp" from Zelda: Skyward Sword. It is a nice-looking piece but I'm not sure how to make a functional harp from it.
Here's the sitch. The definition of "harp" is strings running perpendicular to the soundboard: in fact, they terminate in the soundboard. The lyre family -- as well as lutes and zithers -- have strings that run parallel to the soundboard and they acoustically couple to it via the bridge. (Think of a lyre as a guitar without a fretboard, and a zither as a guitar without a fretboard or a neck).
All of these work -- aka, project with volume and a good tone -- because there is a resonant cavity under the soundboard. For a guitar, that's the body of the instrument; try playing an electric guitar unplugged and you'll see exactly what that body does.
So the shape of the upper part of the Zelda harp is like a Kithara, the early Greek lyre. The strings terminate on a crosspiece which is suspended between two horns. However, in a Kithara the horns project from a soundbox -- the lower body -- with a bridge and tailpiece.. The Zelda harp is basically a croissant shape and the strings terminate along the inner curve as if it were a harp.
This would have lousy acoustics. Best I can think of is hide a soundboard inside, and then provide an opening for the sound to get out. There's also the issue of the crosspiece but builders have flattened that and added traditional tuning pegs to it without seriously harming the aesthetics of the instrument.
One alternative would be to make it an electric harp. Trouble is, you have to stick a pickup on every single string, unless they terminate in a single resonating piece (like, say...a soundboard).
Or go completely out of physical acoustics and make a laser harp. You could even stick a laser smoke generator in the body and even 5mW lasers would become visible. I think green lasers would look nice with the gold finish. Of course once you've started adding lights...why not make the harp body glow (gold, of course) as well?
But that gets into a completely different kind of project. One I could do. It is rather annoying, really; I've spent several decades collecting an eclectic set of skills from sculpture to fabrication to electronics and I would be entirely comfortable in approaching such a project. But I'm really more interested in learning the basics of acoustic instruments right now.
(Which also leaves out the Vulcan Lyre; although you could build an archtop, both the body shape and the canonical sound produced argues for it to be heavily electronic. Also, it is even more popular than the Zelda harp and there are at least two really excellent ones made by professional luthiers already.)
Say, I wonder if there are other fictional instruments of the string family? (Yes, there's the Skyrim lute, but I've watched a build of it and it is basically a shallow guitar with a lot of extra gingerbread.) I might be tempted to do that one but only as an electric and with full CNC.
Which is also a direction I'm going of late. Sure, it is fun to putter around a woodshop hand-shaping little bits of hardwood, but these days I'd just as soon leverage every labor-saving, time-saving, technological enhancement available. That's the thing I'm proudest about my Mini-Hoo, at least so far; that it took two afternoons to build (and one of them was mostly the sanding).
So I guess it makes sense I've started a Reaper file for "Uncharted Worlds" (the music that plays in the galaxy map and planet probe screen of all the Mass Effect games). The process is a little different on this one; found a MIDI file that seems close enough. Spent the afternoon finding voicing for it that matched the capabilities of my available instruments. And tried the top one (the ukulele part). Not too bad.
(Toughest part is my violin-trained instinct is to fret each upcoming note as soon as possible. For a guitar or uke part you may want to stay fretted in order to let the note sustain.)
Yes, there's a link. I started thinking about baby harps and similar when I realized "Uncharted Worlds" would need more and distinct voices than I currently own. And that got me thinking about instrument kits and one thing led to another...and there will be a fully detailed post on my new instrument when it is done and functional and I've had a chance to record a sample off it.
Bass practice is ongoing for the Hellboy cover. My thumb finally listened to me (I think it was changing my position; took off the neck strap and propped the bass on a leg instead. That freed my plucking hand from a support role.) So anyhow the thumb slide method is working for me now. Still some issues damping the D string but it is much less problematic than that A.
Yeah; on listen through playback other than headphones the test bass part I recorded really wasn't working for me. I need that finger plucked sound and I need to control the excess resonance. And that means learning proper bass technique.
And speaking of a Link:
While I was looking at various people's DIY harps and lyres I ran across builds of the "Goddess Harp" from Zelda: Skyward Sword. It is a nice-looking piece but I'm not sure how to make a functional harp from it.
Here's the sitch. The definition of "harp" is strings running perpendicular to the soundboard: in fact, they terminate in the soundboard. The lyre family -- as well as lutes and zithers -- have strings that run parallel to the soundboard and they acoustically couple to it via the bridge. (Think of a lyre as a guitar without a fretboard, and a zither as a guitar without a fretboard or a neck).
All of these work -- aka, project with volume and a good tone -- because there is a resonant cavity under the soundboard. For a guitar, that's the body of the instrument; try playing an electric guitar unplugged and you'll see exactly what that body does.
So the shape of the upper part of the Zelda harp is like a Kithara, the early Greek lyre. The strings terminate on a crosspiece which is suspended between two horns. However, in a Kithara the horns project from a soundbox -- the lower body -- with a bridge and tailpiece.. The Zelda harp is basically a croissant shape and the strings terminate along the inner curve as if it were a harp.
This would have lousy acoustics. Best I can think of is hide a soundboard inside, and then provide an opening for the sound to get out. There's also the issue of the crosspiece but builders have flattened that and added traditional tuning pegs to it without seriously harming the aesthetics of the instrument.
One alternative would be to make it an electric harp. Trouble is, you have to stick a pickup on every single string, unless they terminate in a single resonating piece (like, say...a soundboard).
Or go completely out of physical acoustics and make a laser harp. You could even stick a laser smoke generator in the body and even 5mW lasers would become visible. I think green lasers would look nice with the gold finish. Of course once you've started adding lights...why not make the harp body glow (gold, of course) as well?
But that gets into a completely different kind of project. One I could do. It is rather annoying, really; I've spent several decades collecting an eclectic set of skills from sculpture to fabrication to electronics and I would be entirely comfortable in approaching such a project. But I'm really more interested in learning the basics of acoustic instruments right now.
(Which also leaves out the Vulcan Lyre; although you could build an archtop, both the body shape and the canonical sound produced argues for it to be heavily electronic. Also, it is even more popular than the Zelda harp and there are at least two really excellent ones made by professional luthiers already.)
Say, I wonder if there are other fictional instruments of the string family? (Yes, there's the Skyrim lute, but I've watched a build of it and it is basically a shallow guitar with a lot of extra gingerbread.) I might be tempted to do that one but only as an electric and with full CNC.
Which is also a direction I'm going of late. Sure, it is fun to putter around a woodshop hand-shaping little bits of hardwood, but these days I'd just as soon leverage every labor-saving, time-saving, technological enhancement available. That's the thing I'm proudest about my Mini-Hoo, at least so far; that it took two afternoons to build (and one of them was mostly the sanding).
Saturday, October 6, 2018
Who is a liar
Stay tuned...new project reaching the final stages. Assuming nothing goes wrong I'll be writing it up as an Instructable.
Friday, October 5, 2018
Coming to blows
Spent a whole practice session doing nothing but playing the same note over and over. With a tuner in front of me.
And it worked. Felt an immediate improvement. Seems that the burbling I'd been getting was me hitting the edge of the slot. Once I was focused on the pitch center, I could also start playing with tone; I'm finding the shifts in mouth shape and tongue position that give a darker, softer tone, or a more focused, brighter tone.
Oh, yeah. And like with the violin, when you hit the pitch center dead on there's a sympathetic resonance you can hear and feel.
But it's silly to wait until I'm "good enough" to record parts, because I'll never be satisfied. I'll learn more, and have more fun doing it, if I record now.
Above is a proof-of-concept draft: I recorded the horn part "wild"; over a portable mic, in the woodshop, without even a metronome. Once I put it in the working file I immediately realized the straight-up bass didn't work; what blended was the fake upright technique (thumb pluck and damping the strings near the bridge with the heel of the plucking hand).
And I had a bad moment when the piano didn't work at all. And I'd already tried organ and even guitar. But electric piano -- especially when I shifted from brushed snare to a brush hi-hat figure -- made a blend I liked.
So now I can work on solving the rest of the arrangement. And continue rehearsing the parts (the bass needs the most practice).
Picture from Ukulele Underground
The Hellboy cover is a very different direction. It is pushing instruments I don't know yet how to blend properly, or how to play properly. I want to get back to the "Bardic Covers" (game and movie themes done with Early instruments). Of course the direction I want to go there is a lot more authentic Early Music voicings, and there's a lot of theory to learn there as well. Plus my guitar--err, ukulele-- playing is really not up for the kind of parts I hear in my mind.
And stop with the instrument longings. More or less. I can justify the instrument above as my latest wish because my old uke just isn't up for what I'm demanding of it.
But as I've been thinking ahead towards the most likely next cover (the "Galaxy Map" backing track from Mass Effect) I can't help but notice there are multiple lines on different plucked or pitched percussion instruments. And wouldn't it be great to have a baby harp for this? Or...if for no other reason than harps are hard to play and building a lyre would be fun...
A "Sutton Hoo" style lyre.
And it worked. Felt an immediate improvement. Seems that the burbling I'd been getting was me hitting the edge of the slot. Once I was focused on the pitch center, I could also start playing with tone; I'm finding the shifts in mouth shape and tongue position that give a darker, softer tone, or a more focused, brighter tone.
Oh, yeah. And like with the violin, when you hit the pitch center dead on there's a sympathetic resonance you can hear and feel.
Above is a proof-of-concept draft: I recorded the horn part "wild"; over a portable mic, in the woodshop, without even a metronome. Once I put it in the working file I immediately realized the straight-up bass didn't work; what blended was the fake upright technique (thumb pluck and damping the strings near the bridge with the heel of the plucking hand).
And I had a bad moment when the piano didn't work at all. And I'd already tried organ and even guitar. But electric piano -- especially when I shifted from brushed snare to a brush hi-hat figure -- made a blend I liked.
So now I can work on solving the rest of the arrangement. And continue rehearsing the parts (the bass needs the most practice).
Picture from Ukulele Underground
The Hellboy cover is a very different direction. It is pushing instruments I don't know yet how to blend properly, or how to play properly. I want to get back to the "Bardic Covers" (game and movie themes done with Early instruments). Of course the direction I want to go there is a lot more authentic Early Music voicings, and there's a lot of theory to learn there as well. Plus my guitar--err, ukulele-- playing is really not up for the kind of parts I hear in my mind.
And stop with the instrument longings. More or less. I can justify the instrument above as my latest wish because my old uke just isn't up for what I'm demanding of it.
But as I've been thinking ahead towards the most likely next cover (the "Galaxy Map" backing track from Mass Effect) I can't help but notice there are multiple lines on different plucked or pitched percussion instruments. And wouldn't it be great to have a baby harp for this? Or...if for no other reason than harps are hard to play and building a lyre would be fun...
A "Sutton Hoo" style lyre.
Subscribe to:
Posts (Atom)
